Complete Industrial Equipment Solutions
High quality, ASME and TEMA compliant machinery manufactured to precise specifications.

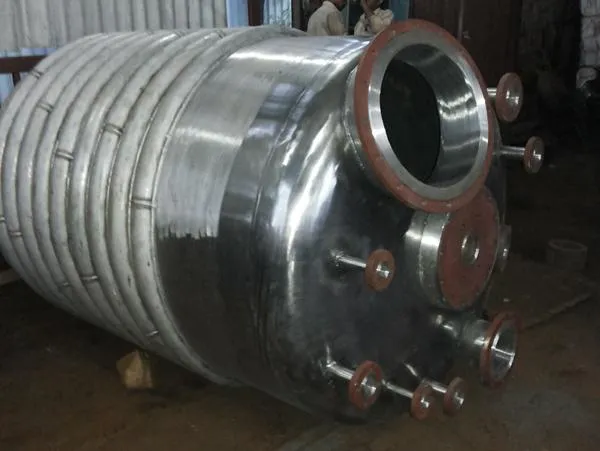

Reactors
GMP compliant and specialized reaction vessels for pharmaceutical, chemical, and herbal production.
Key Features
- •Built per DIN 28136 and ASME standards
- •All clamps/flanges comply with ANSI/DIN
- •Corrosion resistance and rust proof body
- •Custom options: variable speed drive, mechanical seal, inert gas provision
- •Can withstand 650–700 mmHg vacuum and 3 bar pressure
| Type / Model | Range |
|---|---|
| SS Reactors with Jacket | 100 L – 20 KL |
| SS Reactors with Jacket + Cladding | 100 L – 20 KL |
| SS Crystallizer Reactors (cGMP Model) | 250 L – 20 KL |
| SS Metal Batch Reactors (100% Radiography) | 2 KL – 15 KL |
| SS Limpet Coil Reactors | 500 L – 15 KL |
| SS Hydrogenators (Pressure Reactors) | 1 KL – 12 KL |
| SS Liquid Nitrogen Coil Reactors | 2 KL – 15 KL |
| SS Inside & Outside Coil Reactors | 2 KL – 15 KL |
| MS Reactors | 5 KL – 20 KL |

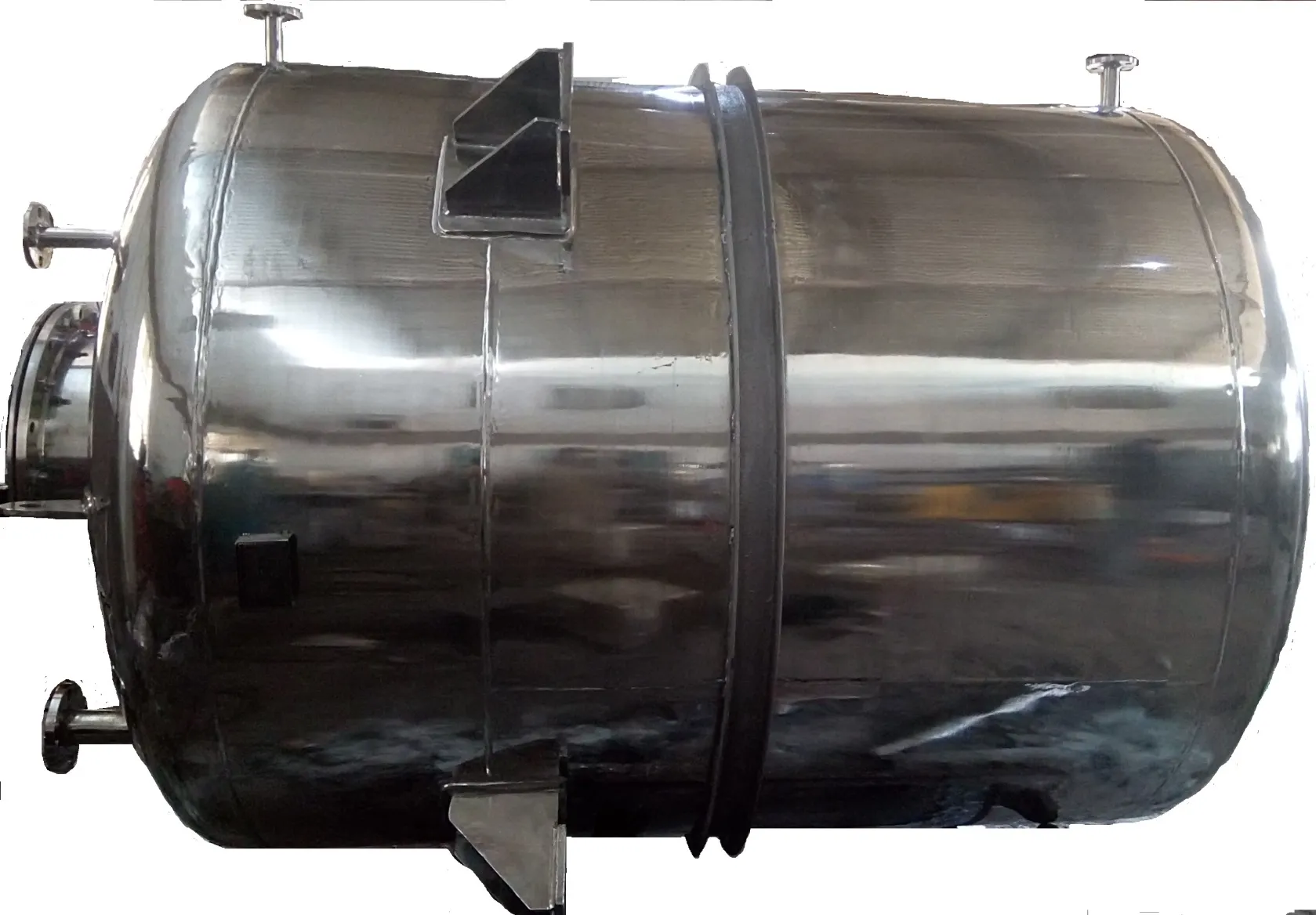

Receivers & Tanks
Industrial storage and processing tanks in Stainless Steel, Mild Steel, and FRP materials.
Key Features
- •SS, MS, and FRP tank options
- •Applications: storage, chemical processing, pharma, water systems
- •Corrosion resistant and high durability
- •Custom sizing and configurations
- •Jacketed and agitator options available
| Type / Model | Range |
|---|---|
| SS Receivers & Tanks | 100 L – 60 KL |
| MS Receivers & Tanks | 250 L – 100 KL |
| Hot Water Tanks | 3 KL – 20 KL |
| Vacuum Traps | 250 L – 1 KL |
| Brine Tanks | 10 KL – 100 KL |
| Jacketed Receivers | 1 KL – 10 KL |
| Receivers with Agitators | 250 L – 3 KL |

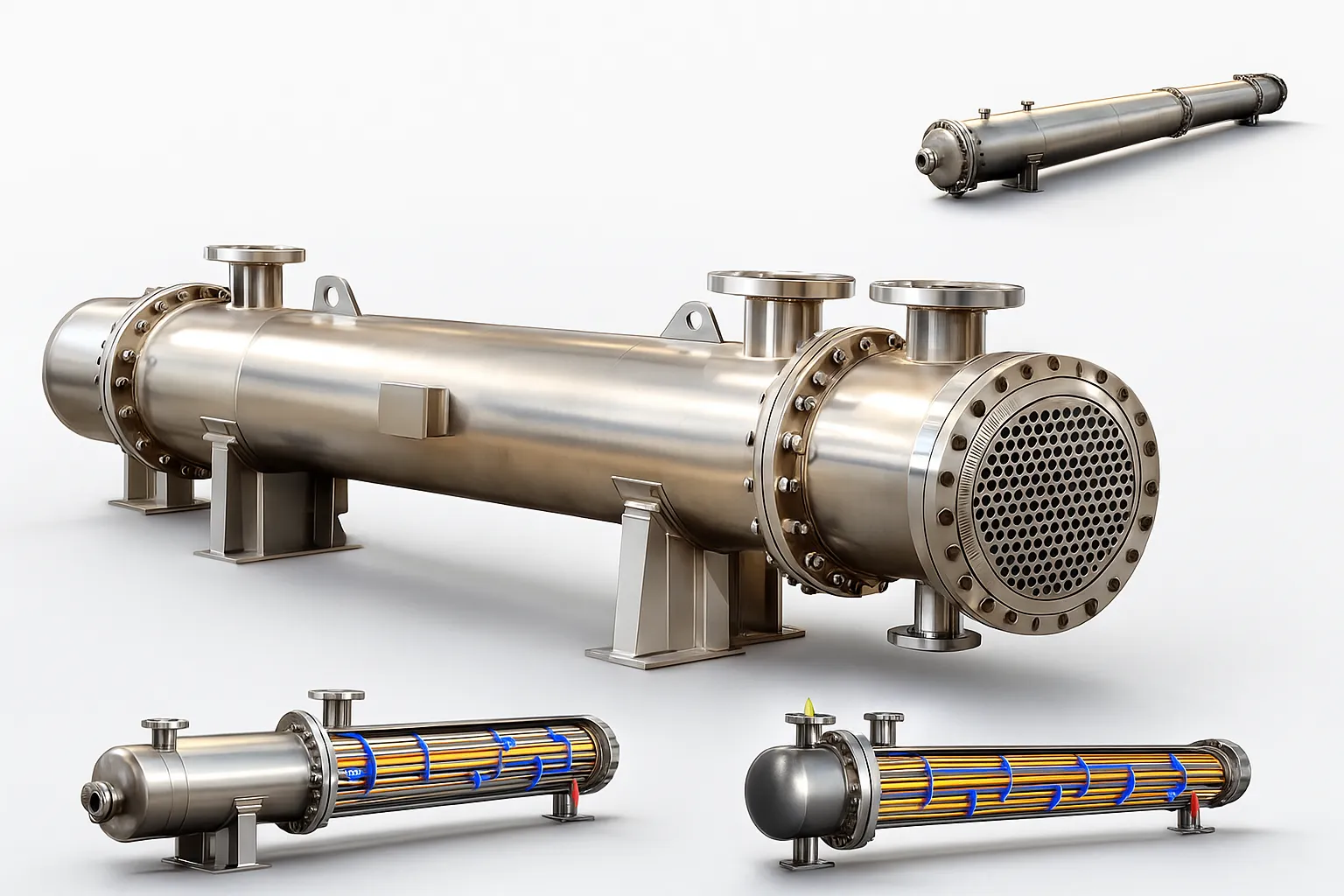

Heat Transfer & Evaporation Equipment
Shell & tube, U-tube, and corrugated tube heat transfer solutions with enhanced performance.
Key Features
- •Enhanced heat transfer efficiency
- •Reduced fouling with corrugated tube technology
- •High Reynolds number even at low flow
- •Easy to clean and maintain
- •Wide diameter options for various applications
| Type / Model | Range |
|---|---|
| Heat Exchangers | 2m² – 50m² |
| Reboilers | 10m² – 40m² |
| Falling Film Evaporators | 8m² – 30m² |
| Columns | 300mm – 1000mm dia |
| U-Tube Bundle | 8m² – 30m² |
| Receiver + Condenser | 1 KL with 6m² |
| Vacuum Condensers | 3m² – 6m² |

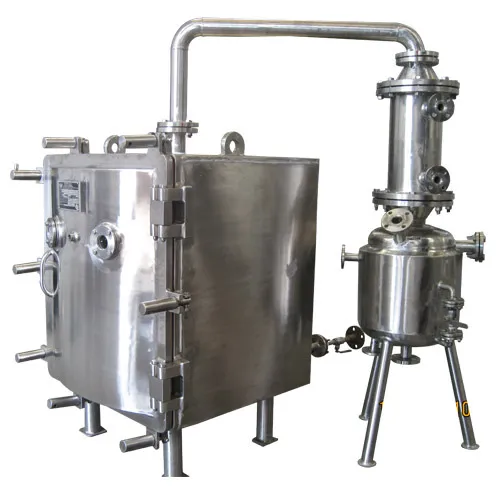

Filtration Equipment
Leaf filters, nutsche filters, and pressure filtration systems for industrial separation.
Key Features
- •Leaf filters for batch operations
- •Nutsche filters: round and rectangular options
- •Pressure filters for continuous processing
- •Online and carbon candle filter options
- •Stainless steel construction for durability
| Type / Model | Range |
|---|---|
| SS Leaf Filters | 25 L – 200 L |
| Nutsche Filters (Round & Rectangular) | 50 L – 2 KL |
| SS Pressure Filters | 100 L – 1 KL |
| Online Filters | 5 L – 20 L |
| Carbon Candle Filters | Up to 1 KL |
Need Custom Equipment?
Our engineering team specializes in custom solutions. Get in touch for specifications and quote.
